Stainless Steel Pipe are used in industries that are very demanding because they offer excellent resistant to corrosion. These SS ERW Pipe are available in a number of categories, grades and types and they are used in a wide number of applications such as dairy and food processing, synthetic fibers, oil and gas processing, refinery and petrochemicals, water treatment facilities, etc. Online, one can easily obtain the stainless-steel pipe price list.
Stainless Steel Seamless Pipe for the Oil & Gas and Refinery Industry in the form of Stainless-Steel Round Pipe, Stainless Steel Hexagonal Pipe, Stainless Steel Square Pipe and Stainless-Steel Hollow Pipe. stainless steel Thin Wall Pipe typically finds application including Marine, Aerospace industries, Chemical processing, nuclear reactors, Pollution control equipment etc. All of our SS Pipe are producing by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service & high-quality SS round pipe. Nominal SS Pipe size available in SCH20, SCH30, STD, SCH40, SCH60, SCHXS, SCH80, SCH100, SCH120, SCH140, SCH160, SCH XXS in a wide range of wall thickness.
| Standards | ASTM, DIN, EN |
|---|---|
| Steel Grades | A335-P5, P9, P11, P22, P91, 16Mo3, 13CrMo4-5, 10CrMo9-10 X11CrMo5, X10CrMoVNb9-1 X 20 CrMo V 11-1 |
| Sizes | 1/2” to 24”- (10.2mm to 813.0mm) |
| Thickness | 1.5mm to 80.0mm |
| Ends | Bevelled/Plain |
| Lengths | SRL 5-8m and DRL 9-13m |
| Availability | Stock/ Production |

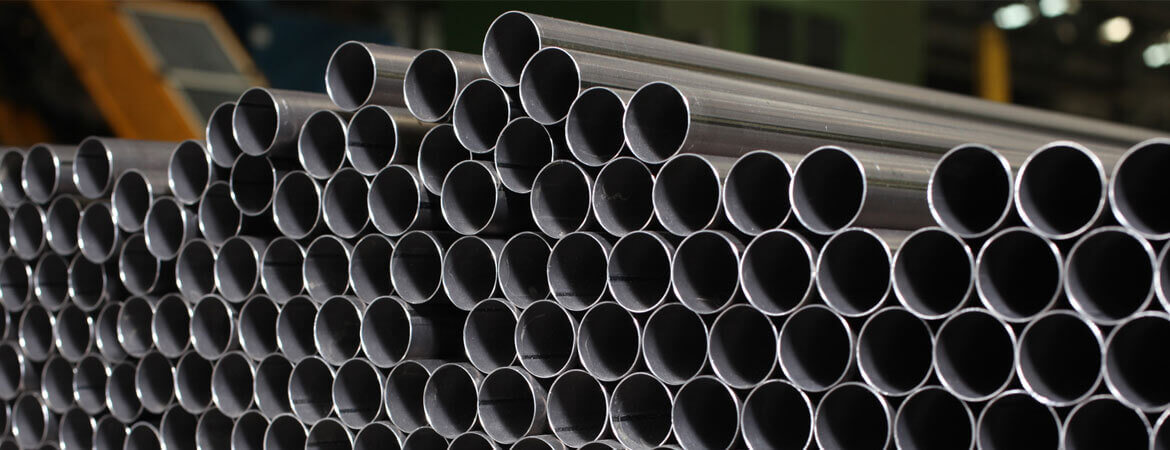

We manufacture Carbon Steel ERW pipe & Tubes. We also stock Seamless Steel pipes of Leading Manufacturer of Carbon Steel Seamless Pipes. We export a wide size range & wall thickness in Carbon Steel Pipe & Tubes for Oil & Gas Pipelines, low pressure conveyance of gas, transportation of water, oil, air steam or other fluids.
Carbon Steel Pipes are best & cost-effective solution for machinery, buildings construction, irrigation & distribution of high heat, extreme cold & high temperature gases, thin-wall, straight bead, precision carbon steel pipes are most reliable & Low-cost solution for High Temperature Service applications. Carbon Steel Welded Pipe can be used in water wells, because Carbon Steel ERW pipe is 2 times cheaper than Seamless Carbon Steel Pipe of reputed Manufacturers of Carbon Steel Seamless Pipes in India, Japan, Italy, USA, UK, Taiwan or China. If you are looking for tested & certified ERW & seamless pipes at reasonable price, mail us to get price list directly from Carbon Steel Pipe manufacturers.
| Standards | ASTM, DIN, EN |
|---|---|
| Steel Grades | A333 Gr.6, A106 Gr B/A/C, API 5L X42, X46, X52,X60, X65, X70 (PSL1 & PSL2), P235HG,P265GH (TC1 & TC2), S355J2H, P355N, P420N, L245NB, L290NB, ST378, ST35.8 |
| Sizes | 3/8" to 24" - (10.2mm to 610.0mm) |
| Schedules | SCH STD, SCH XS, SCH XXS, SCH20, SCH40,SCH60,SCH80,SCH100, SCH120,SCH140,SCH160 |
| Thickness | 1.5mm to 60.0mm |
| Ends | Bevelled/Plain |
| Lengths | SRL 5-8m and DRL 9-13m |
| Availability | Stock/ Production |

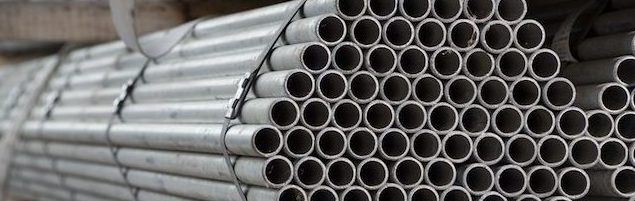

Duplex Steel Pipe is a metal alloy pipes that is made out of steel with different alloying elements. The name comes from the dual nature of the material. The duplex material contains bot the austenitic and ferrite structures in the metallurgy of the material. These properties bring the material the best of both ferritic and austenitic steel types. The pipes could be hot rolled or cold drawn. The hot rolled ones are stronger and the cold drawn ones are seamless and accurate in dimensions.
There are different grades of duplex pipes with different mechanical properties. There are duplex, super duplex and lean categories in the Duplex Pipes varieties. The Seamless Duplex Pipes are both strong and is highly corrosion resistant.
| Standards | ASTM, DIN, EN |
|---|---|
| Steel Grades | TP304L, TP316L, TP316TI, TP304H, TP310S, TP321H, TP347H, TP904L, UNS S31803 (DUPLEX), UNS S32760 (SUPER DUPLEX) |
| Sizes | 1/8” to 36”- (10.29mm to 914.40mm) |
| Schedules | SCH STD, SCH XS, SCH XXS, SCH 5S, SCH 10/10S, SCH 20, SCH 30, SCH 40/40S, SCH60, SCH80/80S, SCH 100, SCH 120, SCH 140, SCH 160 |
| Thickness | 1.5mm to 80.0mm |
| Ends | Bevelled/Plain |
| Lengths | SRL 5-8m and DRL 9-13m |
| Availability | Stock/ Production |

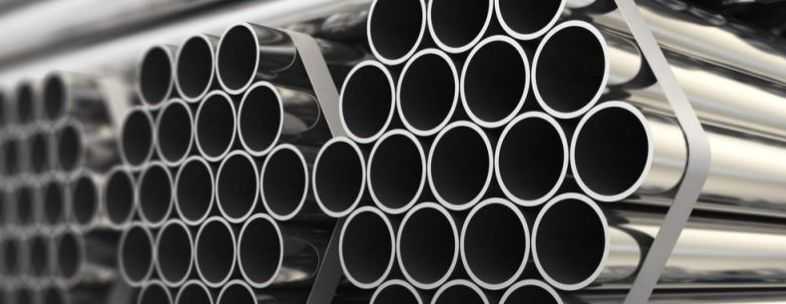

Welded pipe starts out as a long, coiled ribbon of steel called a skelp. The skelp is cut to the desired length, resulting in a flat rectangular sheet. The width of that sheet’s shorter ends will become the pipes outside circumference, a value that can be used to calculate its eventual outside diameter. The rectangular sheets are fed through a rolling machine that curls the longer sides up toward one another, forming a cylinder.
An advantage of ERW pipe is that no fusion metals are used and the weld seam cannot be seen or felt. That’s opposed to double submerged arc welding (DSAW), which leaves behind an obvious weld bead that must then be eliminated depending on the application. Welded pipe manufacturing techniques have improved over the years. Perhaps the most important advancement has been the switch to high-frequency electric currents for welding. Prior to the 1970s, low-frequency current was used. Weld seams produced from low-frequency ERW were more prone to corrosion and seam failure. Most welded pipe types require heat treatment after manufacture.
| Standards | ASTM, DIN, EN |
|---|---|
| Steel Grades | TP304L, TP316L, TP316TI, TP304H, TP310S, TP321H, TP347H, TP904L, UNS S31803 (DUPLEX), UNS S32760 (SUPER DUPLEX) |
| Sizes | 1/8” to 36”- (10.29mm to 914.40mm) |
| Schedules | SCH STD, SCH XS, SCH XXS, SCH 5S, SCH 10/10S,SCH 20, SCH 30, SCH 40/40S, SCH60, SCH80/80S, SCH 100, SCH 120, SCH 140, SCH 160 |
| Thickness | 1.5mm to 80.0mm |
| Ends | Bevelled/Plain |
| Lengths | SRL 5-8m and DRL 9-13m |
| Availability | Stock/ Production |

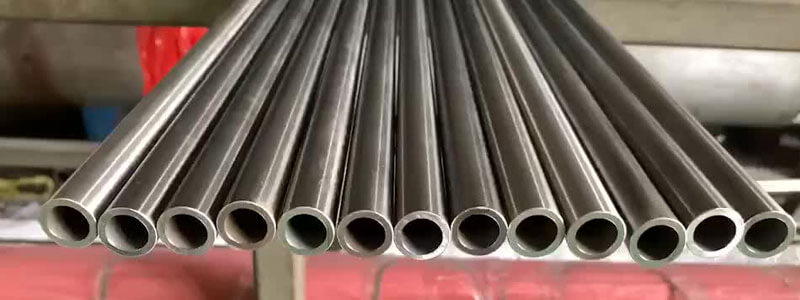

Seamless stainless-steel pipe is used in applications where high temperature strength and superior corrosion resistance are critical. Further, stainless steel is easy to clean and doesn’t tarnish. Stainless steel is an iron alloy that contains a minimum of 10.5% chromium.
Alloying elements such as nickel, molybdenum, titanium, carbon, nitrogen, and copper can boost the strength, formability, and other properties of stainless steel. Different alloys offer different levels of corrosion resistance. Stainless steel alloys offer greater cryogenic toughness, a higher work hardening rate, increased strength and hardness, greater ductility, and a more attractive appearance compared to carbon steel.
| Standards | ASTM, EN |
|---|---|
| Steel Grades | Alloy 825, Alloy 625, Alloy 600, Alloy 400, Alloy 201, Inconel C276, Alloy 200 |
| Sizes | 3" to 42" |
| Schedules | SCH STD, SCH XS, SCH XXS, SCH 5S, SCH 10/10S,SCH 20, SCH 30, SCH 40/40S, SCH60, SCH80/80S, SCH 100, SCH 120, SCH 140, SCH 160 |
| Thickness | 1.5mm to 80.0mm |
| Ends | Bevelled/Plain |
| Lengths | SRL 5-8m and DRL 9-13m |
| Availability | Stock/ Production |
